2*8*D4*50L
Helix angle：30°
Grain Size: 0.4um
Application: P20、718H etc soft material.NAK80、H13、S136 etc after quenching.
This Long Neck Small End Mill series of positioning general economical milling cutters. open coarse and fine milling are both applicable.
PRODUCT DESCRIPTION ▼

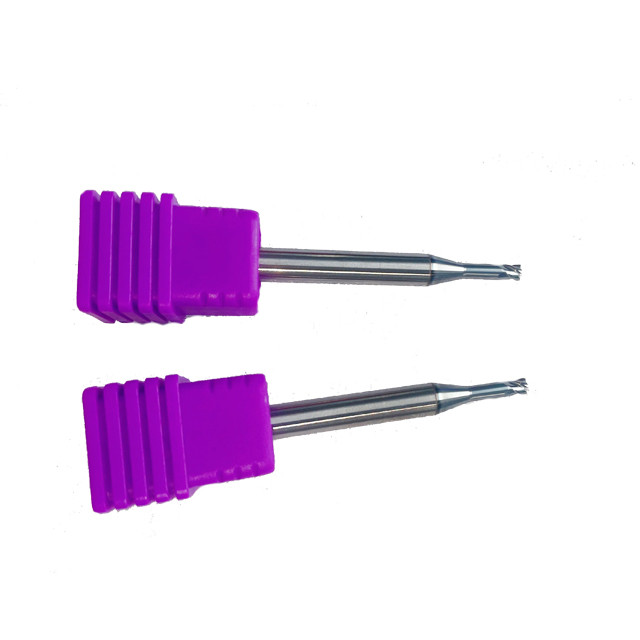

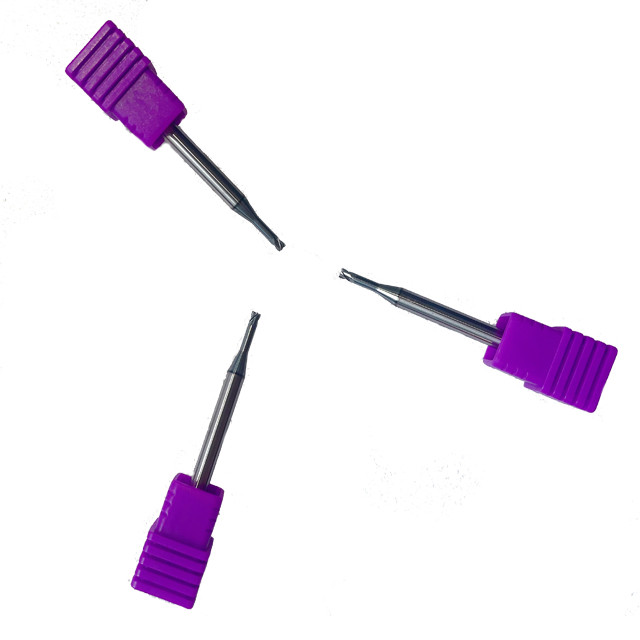

4 flute US Long Neck Small End Mill Carbide Tools
The imported ultra-fine particle matrix with a grain size of 0.4μm is selected, Long Neck Small End Mill has good toughness and hardness, effectively reducing the risk of chipping.
The titanium-silicon composite coating is used, Long Neck Small End Mill is ultra-highly resistant to high temperatures and suitable for dry cutting or micro-lubrication cutting.

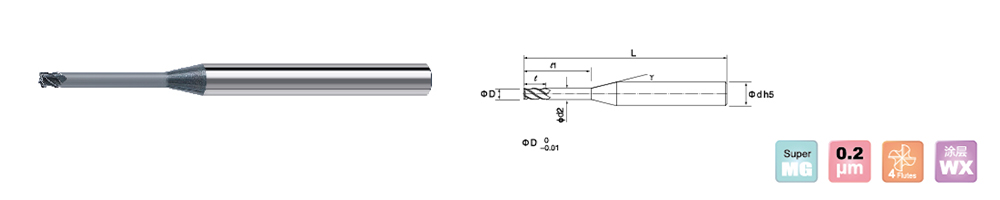

Long Neck Small End Mill Specification：
Model (NO.) | Blade Diameter (D) | Neck Length (L) | Blade Length (L) | Neck Diameter (D) | Neck Angle (γ Reference) | Shank Diameter (D) | Full Length (L) |
USE-40200-060-04050 | 2 | 6 | 2 | 1.94 | 12° | 4 | 50 |
USE-40200-080-04050 | 8 | 50 | |||||
USE-40200-100-04050 | 10 | 50 | |||||
USE-40200-120-04050 | 12 | 50 | |||||
USE-40200-140-04050 | 14 | 50 | |||||
UUE-40400-160-04050 | 16 | 50 | |||||
UUE-40400-180-04050 | 18 | 50 | |||||
UUE-40400-200-04050 | 20 | 50 |
