R1×D6×60L
Material: Solid Carbide
Grain Size: 0.4um
Category: Ball Nose End
No of Flutes: 2F
Helix Angle:30°
Carbide Cutting tools Characteristic：

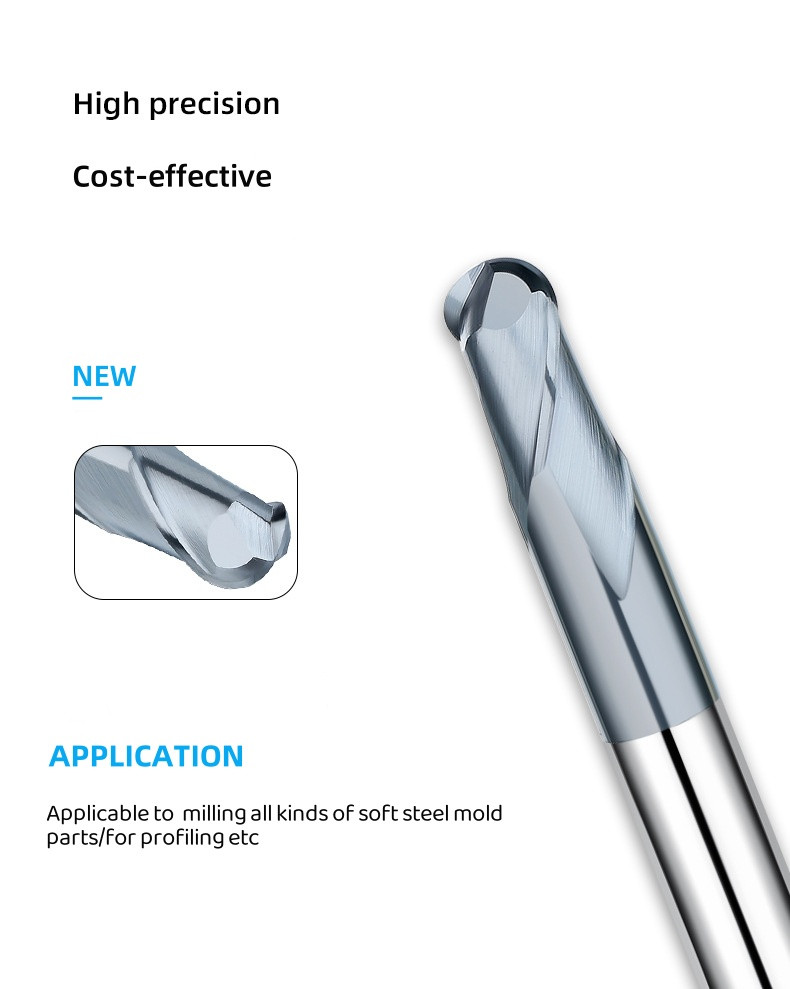

Carbide Ball Nose End Mills are precision tools designed for three-dimensional surface machining and high-precision contour cutting. Its spherical cutter head design enables it to efficiently complete the processing of complex geometric shapes. Carbide Ball Nose End Mills is widely used in mold manufacturing, aerospace, medical equipment, automotive parts and art carving and other fields.
We used a high-hardness, high-toughness matrix material manufactured (0.4um) with a special negative angle design.

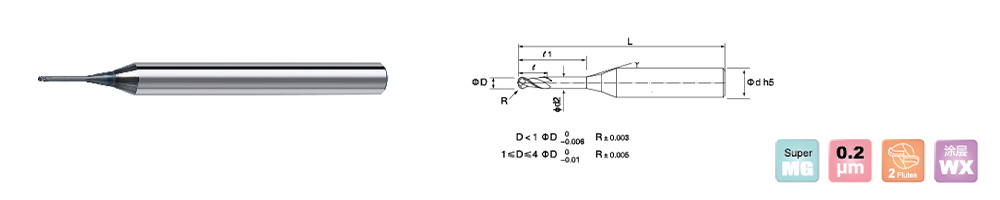

| 型号No | 球头半径R | 颈长l1 | 刃长l | 外径D | 颈径d2 | 劲角r | 柄径d | 全长L |
| USB-20200-160-06060 | R1 | 16 | 2 | 2 | 1.94 | 12° | 6 | 60 |
| USB-20200-180-06060 | 18 | 60 | ||||||
| USB-20200-200-06060 | 20 | 60 | ||||||
| USB-20200-250-06060 | 25 | 60 | ||||||
| USB-20300-160-06060 | R1.5 | 16 | 3 | 3 | 2.92 | 12° | 6 | 60 |
| USB-20300-180-06060 | 18 | 60 | ||||||
| USB-20300-200-06060 | 20 | 60 | ||||||
| USB-20300-250-06060 | 25 | 60 | ||||||
| USB-20300-160-06075 | 16 | 75 | ||||||
| USB-20300-180-06075 | 18 | 75 | ||||||
| USB-20300-200-06075 | 20 | 75 | ||||||
| USB-20300-250-06075 | 25 | 75 | ||||||
| USB-20300-300-06075 | 30 | 75 | ||||||
| USB-20400-160-06060 | R2 | 16 | 4 | 4 | 3.9 | 12° | 6 | 60 |
| USB-20400-180-06060 | 18 | 60 | ||||||
| USB-20400-200-06060 | 20 | 60 | ||||||
| USB-20400-250-06060 | 25 | 60 | ||||||
| USB-20400-160-06075 | 16 | 75 | ||||||
| USB-20400-180-06075 | 18 | 75 | ||||||
| USB-20400-200-06075 | 20 | 75 | ||||||
| USB-20400-250-06075 | 25 | 75 | ||||||
| USB-20400-300-06075 | 30 | 75 |
As a top-tier China Carbide Ball Nose End Mills manufacturer, Baiyang Tools Factory excels in producing premium Carbide Ball Nose End Mills and precision cutting tools for global industries. Our Carbide Ball Nose End Mills are crafted with ultra-fine grain carbide and advanced nano-coatings (TiAlN, AlCrN), delivering unmatched wear resistance and heat dissipation for machining hardened steels, titanium alloys, and composites. Advantages of partnering with us:
High Precision: Carbide Ball Nose End Mills tolerance within ±0.005mm, ensuring flawless 3D contouring in mold-making and aerospace applications.
Rigorous Quality: ISO 9001-certified production, SGS-tested.
Fast Global Delivery: Stock availability for standard tools, 24/7 technical support.
Trust Baiyang Tools Factory—your reliable china Carbide Cutting Tools manufacturer—for durability, innovation, and cost-efficiency.
