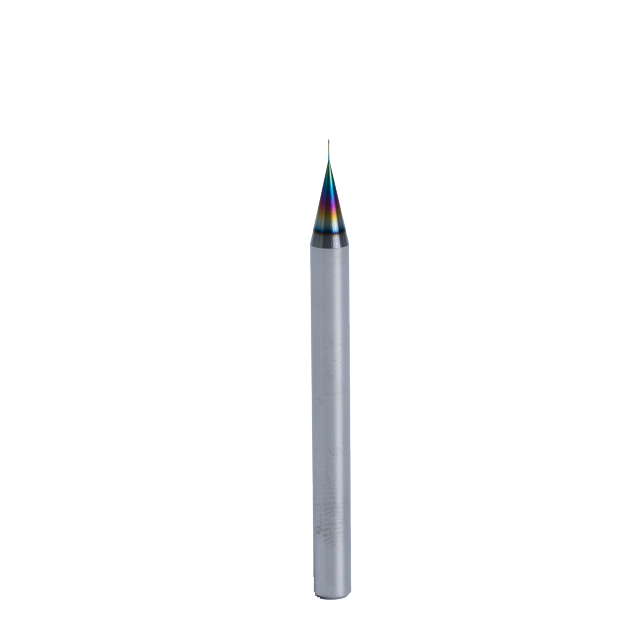

0.2mm to 0.8mm
Material: Carbide
Grain size: 0.4μm
No of Flutes: 2F
Category: Corner Radius
Coating: DLC
PRODUCT DESCRIPTION ▼
● Coating material: DLC
● Friction coefficient: 0.05-0.1
● Micro hardness: 7000 HV0.05
● Solid Carbide End Mill IS Suitable for copper electrode finishing
Work Material: Aluminum Alloy / Copper Alloy / Resin/copper electrode and other non-ferrous.
Machining Application: Flat Surface / Side Surface / Curved Surface / Groove.
Solid Carbide End Mill Drawing:
Specifications:
Model (NO.) | Blade Diameter (D) | R-corner Radius (R) | Neck Length (L) | Blade Length (L) | Neck Diameter (D) | Neck Angle (γ Reference) | Shank Diameter (D) | Full Length (L) |
ESR002-20020-010-04045 | 0.2 | 0.02 | 1 | 0.2 | 0.18 | 15° | 4 | 45 |
ESR002-20020-015-04045 | 1.5 | 0.2 | 0.18 | 12° | 4 | 45 | ||
ESR002-20020-020-04045 | 2 | 45 | ||||||
ESR002-20020-030-04045 | 3 | 45 | ||||||
ESR005-20020-010-04045 | 0.05 | 1 | 0.2 | 0.18 | 15° | 4 | 45 | |
ESR005-20020-015-04045 | 1.5 | 0.2 | 0.18 | 12° | 4 | 45 | ||
ESR005-20020-020-04045 | 2 | 45 | ||||||
ESR005-20020-030-04045 | 3 | 45 | ||||||
ESR002-20030-010-04045 | 0.3 | 0.02 | 1 | 0.3 | 0.27 | 15° | 4 | 45 |
ESR002-20030-015-04045 | 1.5 | 0.3 | 0.27 | 12° | 4 | 45 | ||
ESR002-20030-020-04045 | 2 | 45 | ||||||
ESR002-20030-030-04045 | 3 | 45 | ||||||
ESR002-20030-040-04045 | 4 | 45 | ||||||
ESR005-20030-010-04045 | 0.05 | 1 | 0.3 | 0.27 | 15° | 4 | 45 | |
ESR005-20030-015-04045 | 1.5 | 0.3 | 0.27 | 12° | 4 | 45 | ||
ESR005-20030-020-04045 | 2 | 45 | ||||||
ESR005-20030-030-04045 | 3 | 45 | ||||||
ESR005-20030-040-04045 | 4 | 45 | ||||||
ESR002-20040-010-04045 | 0.4 | 0.02 | 1 | 0.4 | 0.37 | 15° | 4 | 45 |
ESR002-20040-015-04045 | 1.5 | 0.4 | 0.37 | 12° | 4 | 45 | ||
ESR002-20040-020-04045 | 2 | 45 | ||||||
ESR002-20040-030-04045 | 3 | 45 | ||||||
ESR002-20040-040-04045 | 4 | 45 | ||||||
ESR002-20040-050-04045 | 5 | 45 | ||||||
ESR002-20040-060-04045 | 6 | 45 | ||||||
ESR005-20040-010-04045 | 0.05 | 1 | 0.4 | 0.37 | 15° | 4 | 45 | |
ESR005-20040-015-04045 | 1.5 | 0.4 | 0.37 | 12° | 4 | 45 | ||
ESR005-20040-020-04045 | 2 | 45 | ||||||
ESR005-20040-030-04045 | 3 | 45 | ||||||
ESR005-20040-040-04045 | 4 | 45 | ||||||
ESR005-20040-050-04045 | 5 | 45 | ||||||
ESR005-20040-060-04045 | 6 | 45 | ||||||
ESR010-20040-010-04045 | 0.1 | 1 | 0.4 | 0.37 | 15° | 4 | 45 | |
ESR010-20040-015-04045 | 1.5 | 0.4 | 0.37 | 12° | 4 | 45 | ||
ESR010-20040-020-04045 | 2 | 45 | ||||||
ESR010-20040-030-04045 | 3 | 45 | ||||||
ESR010-20040-040-04045 | 4 | 45 | ||||||
ESR010-20040-050-04045 | 5 | 45 | ||||||
ESR010-20040-060-04045 | 6 | 45 | ||||||
ESR002-20050-020-04045 | 0.5 | 0.02 | 2 | 0.5 | 0.46 | 12 | 4 | 45 |
ESR002-20050-030-04045 | 3 | 45 | ||||||
ESR002-20050-040-04045 | 4 | 45 | ||||||
ESR002-20050-050-04045 | 5 | 45 | ||||||
ESR002-20050-060-04045 | 0.5 | 0.02 | 6 | 0.5 | 0.46 | 12° | 4 | 45 |
ESR002-20050-080-04045 | 8 | 45 | ||||||
ESR002-20050-100-04045 | 10 | 45 | ||||||
ESR005-20050-020-04045 | 0.05 | 2 | 45 | |||||
ESR005-20050-030-04045 | 3 | 45 | ||||||
ESR005-20050-040-04045 | 4 | 45 | ||||||
ESR005-20050-050-04045 | 5 | 45 | ||||||
ESR005-20050-060-04045 | 6 | 45 | ||||||
ESR005-20050-080-04045 | 8 | 45 | ||||||
ESR005-20050-100-04045 | 10 | 45 | ||||||
ESR010-20050-020-04045 | 0.1 | 2 | 45 | |||||
ESR010-20050-030-04045 | 3 | 45 | ||||||
ESR010-20050-040-04045 | 4 | 45 | ||||||
ESR010-20050-050-04045 | 5 | 45 | ||||||
ESR010-20050-060-04045 | 6 | 45 | ||||||
ESR010-20050-080-04045 | 8 | 45 | ||||||
ESR010-20050-100-04045 | 10 | 45 | ||||||
ESR002-20060-020-04045 | 0.6 | 0.02 | 2 | 0.6 | 0.56 | 12° | 4 | 45 |
ESR002-20060-030-04045 | 3 | 45 | ||||||
ESR002-20060-040-04045 | 4 | 45 | ||||||
ESR002-20060-050-04045 | 5 | 45 | ||||||
ESR002-20060-060-04045 | 6 | 45 | ||||||
ESR002-20060-080-04045 | 8 | 45 | ||||||
ESR002-20060-100-04045 | 10 | 45 | ||||||
ESR005-20060-020-04045 | 0.05 | 2 | 45 | |||||
ESR005-20060-030-04045 | 3 | 45 | ||||||
ESR005-20060-040-04045 | 4 | 45 | ||||||
ESR005-20060-050-04045 | 5 | 45 | ||||||
ESR005-20060-060-04045 | 6 | 45 | ||||||
ESR005-20060-080-04045 | 8 | 45 | ||||||
ESR005-20060-100-04045 | 10 | 45 | ||||||
ESR010-20060-020-04045 | 0.1 | 2 | 45 | |||||
ESR010-20060-030-04045 | 3 | 45 | ||||||
ESR010-20060-040-04045 | 4 | 45 | ||||||
ESR010-20060-050-04045 | 5 | 45 | ||||||
ESR010-20060-060-04045 | 6 | 45 | ||||||
ESR010-20060-080-04045 | 8 | 45 | ||||||
ESR010-20060-100-04045 | 10 | 45 | ||||||
ESR020-20060-020-04045 | 0.2 | 2 | 45 | |||||
ESR020-20060-030-04045 | 3 | 45 | ||||||
ESR020-20060-040-04045 | 4 | 45 | ||||||
ESR020-20060-050-04045 | 5 | 45 | ||||||
ESR020-20060-060-04045 | 6 | 45 | ||||||
ESR020-20060-080-04045 | 8 | 45 | ||||||
ESR020-20060-100-04045 | 10 | 45 | ||||||
ESR002-20080-020-04045 | 0.8 | 0.02 | 2 | 0.8 | 0.76 | 12° | 4 | 45 |
ESR002-20080-030-04045 | 3 | 45 | ||||||
ESR002-20080-040-04045 | 4 | 45 | ||||||
ESR002-20080-050-04045 | 5 | 45 | ||||||
ESR002-20080-060-04045 | 6 | 45 | ||||||
ESR002-20080-080-04045 | 8 | 45 | ||||||
ESR002-20080-100-04045 | 10 | 45 | ||||||
ESR005-20080-020-04045 | 0.05 | 2 | 45 | |||||
ESR005-20080-030-04045 | 3 | 45 | ||||||
ESR005-20080-040-04045 | 4 | 45 | ||||||
ESR005-20080-050-04045 | 5 | 45 | ||||||
ESR005-20080-060-04045 | 6 | 45 | ||||||
ESR005-20080-080-04045 | 8 | 45 | ||||||
ESR005-20080-100-04045 | 10 | 45 | ||||||
ESR010-20080-020-04045 | 0.1 | 2 | 45 | |||||
ESR010-20080-030-04045 | 3 | 45 | ||||||
ESR010-20080-040-04045 | 4 | 45 | ||||||
ESR010-20080-050-04045 | 5 | 45 | ||||||
ESR010-20080-060-04045 | 6 | 45 | ||||||
ESR010-20080-080-04045 | 8 | 45 | ||||||
ESR010-20080-100-04045 | 10 | 45 | ||||||
ESR020-20080-020-04045 | 0.2 | 2 | 45 | |||||
ESR020-20080-030-04045 | 3 | 45 | ||||||
ESR020-20080-040-04045 | 4 | 45 | ||||||
ESR020-20080-050-04045 | 5 | 45 | ||||||
ESR020-20080-060-04045 | 6 | 45 | ||||||
ESR020-20080-080-04045 | 8 | 45 | ||||||
ESR020-20080-100-04045 | 10 | 45 |
