Long Neck End Mill /
ES Copper & Aluminium Series /
0.1mm to 0.8mm
Material: Carbide
Grain size: 0.2μm
No of Flutes: 2F
Category: Long Neck Square End Mill
Coating: DLC
PRODUCT DESCRIPTION ▼
● Coated Square End Mill coating material: DLC
● Square End Mill Friction coefficient: 0.05-0.1
● 2 flute Square End Mill Micro hardness: 7000 HV0.05
● Square End Mill Diameter Tolerance: 0-0.006
●Minimize fracturing by high TRS fine(0.2μm) WC grade.

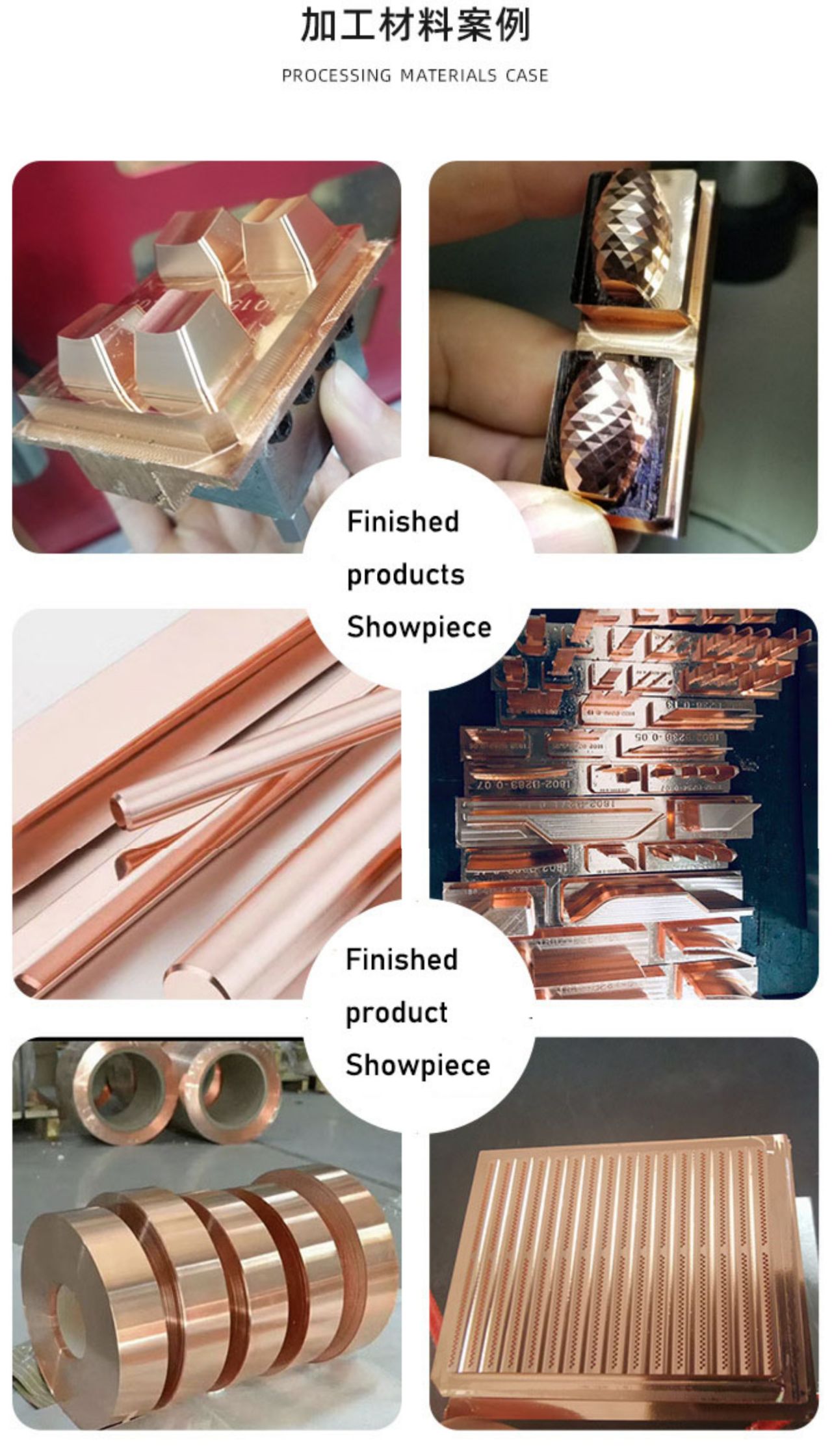

Work Material: Aluminum Alloy / Copper Alloy / Resin/copper electrode and other non-ferrous.
Processing Applications: Flat Surface / Side Surface / Groove / Inclined Cutting.

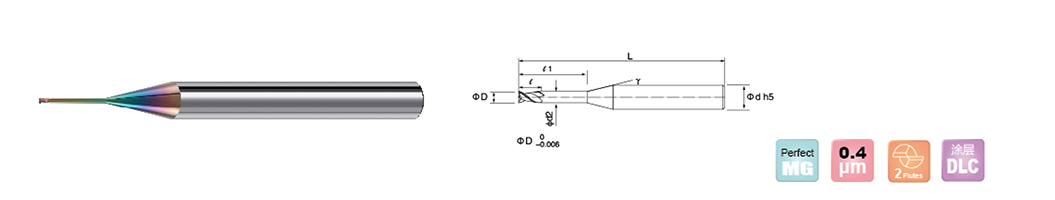

Square End Mill Drawing:
Model (NO.) | Blade Diameter (D) | Neck Length (L) | Blade Length (L) | Neck Diameter (D) | Neck Angle (γ Reference) | Shank Diameter (D) | Full Length (L) |
ESE-20010-003-04045 | 0.1 | 0.3 | 0.1 | 0.085 | 15° | 4 | 45 |
ESE-20010-005-04045 | 0.5 | 45 | |||||
ESE-20010-008-04045 | 0.8 | 45 | |||||
ESE-20010-010-04045 | 1 | 45 | |||||
ESE-20015-005-04045 | 0.15 | 0.5 | 0.15 | 0.13 | 15° | 4 | 45 |
ESE-20015-010-04045 | 1 | 45 | |||||
ESE-20020-010-04045 | 0.2 | 1 | 0.2 | 0.18 | 15° | 4 | 45 |
ESE-20020-015-04045 | 1.5 | 0.2 | 0.18 | 12° | 4 | 45 | |
ESE-20020-020-04045 | 2 | 45 | |||||
ESE-20020-030-04045 | 3 | 45 | |||||
ESE-20020-040-04045 | 4 | 45 | |||||
ESE-20030-010-04045 | 0.3 | 1 | 0.3 | 0.27 | 15° | 4 | 45 |
ESE-20030-015-04045 | 1.5 | 0.3 | 0.27 | 12° | 4 | 45 | |
ESE-20030-020-04045 | 2 | 45 | |||||
ESE-20030-030-04045 | 3 | 45 | |||||
ESE-20030-040-04045 | 4 | 45 | |||||
ESE-20030-050-04045 | 5 | 45 | |||||
ESE-20040-015-04045 | 0.4 | 1.5 | 0.4 | 0.37 | 12° | 4 | 45 |
ESE-20040-020-04045 | 2 | 45 | |||||
ESE-20040-030-04045 | 3 | 45 | |||||
ESE-20040-040-04045 | 4 | 45 | |||||
ESE-20040-050-04045 | 5 | 45 | |||||
ESE-20040-060-04045 | 6 | 45 | |||||
ESE-20050-020-04045 | 0.5 | 2 | 0.5 | 0.46 | 12° | 4 | 45 |
ESE-20050-030-04045 | 3 | 45 | |||||
ESE-20050-040-04045 | 4 | 45 | |||||
ESE-20050-050-04045 | 5 | 45 | |||||
ESE-20050-060-04045 | 6 | 45 | |||||
ESE-20050-080-04045 | 8 | 45 | |||||
ESE-20050-100-04045 | 10 | 45 | |||||
ESE-20060-020-04045 | 0.6 | 2 | 0.6 | 0.56 | 12° | 4 | 45 |
ESE-20060-030-04045 | 3 | 45 | |||||
ESE-20060-040-04045 | 4 | 45 | |||||
ESE-20060-050-04045 | 5 | 45 | |||||
ESE-20060-060-04045 | 6 | 45 | |||||
ESE-20060-080-04045 | 8 | 45 | |||||
ESE-20060-100-04045 | 10 | 45 | |||||
ESE-20070-020-04045 | 0.7 | 2 | 0.7 | 0.66 | 12° | 4 | 45 |
ESE-20070-030-04045 | 3 | 45 | |||||
ESE-20070-020-04045 | 4 | 45 | |||||
ESE-20070-050-04045 | 5 | 45 | |||||
ESE-20070-060-04045 | 6 | 45 | |||||
ESE-20070-080-04045 | 8 | 45 | |||||
ESE-20070-100-04045 | 10 | 45 | |||||
ESE-20080-020-04045 | 0.8 | 2 | 0.8 | 0.76 | 12° | 4 | 45 |
ESE-20080-030-04045 | 3 | 45 | |||||
ESE-20080-040-04045 | 4 | 45 | |||||
ESE-20080-050-04045 | 5 | 45 | |||||
ESE-20080-060-04045 | 6 | 45 | |||||
ESE-20080-080-04045 | 8 | 45 | |||||
ESE-20080-100-04045 | 10 | 45 |
