R1×20×D4×50L
Material: Carbide
Grain Size: 0.4μm
Flute: 2F
Coating: SiTiNO Composite Coating

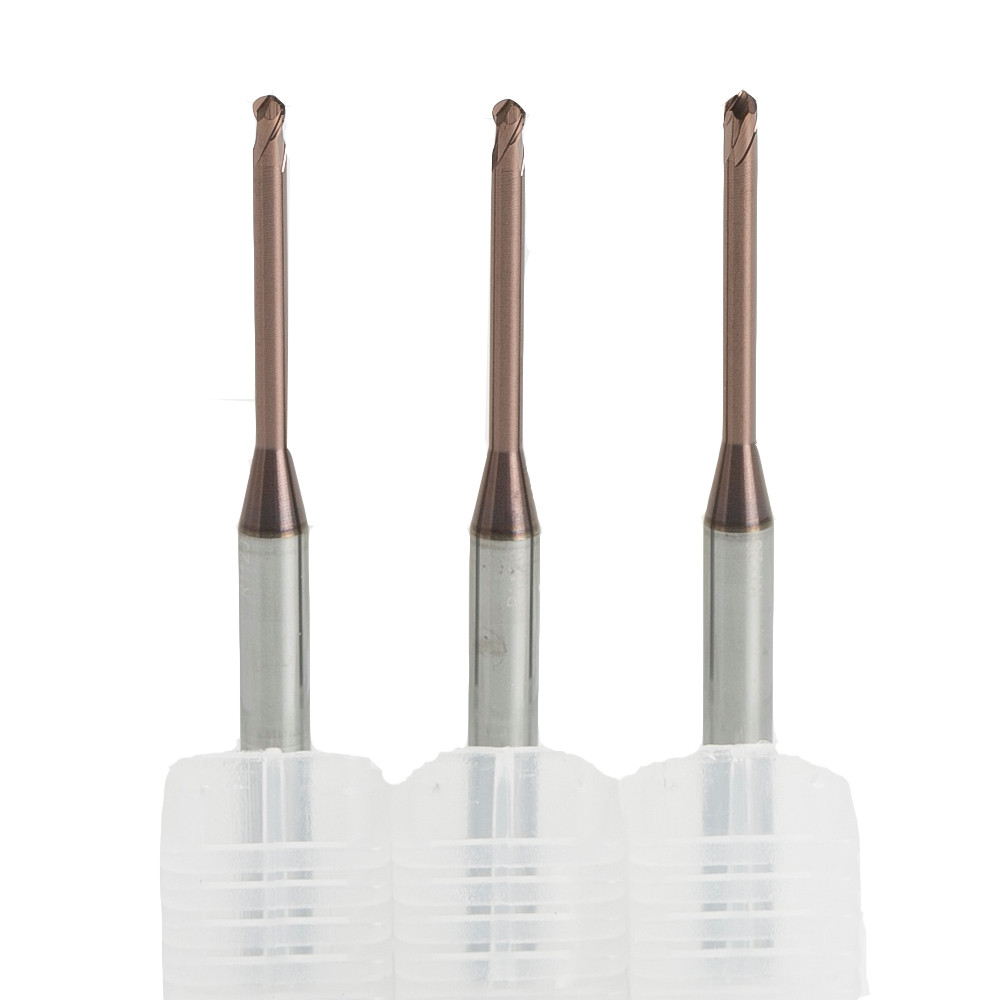

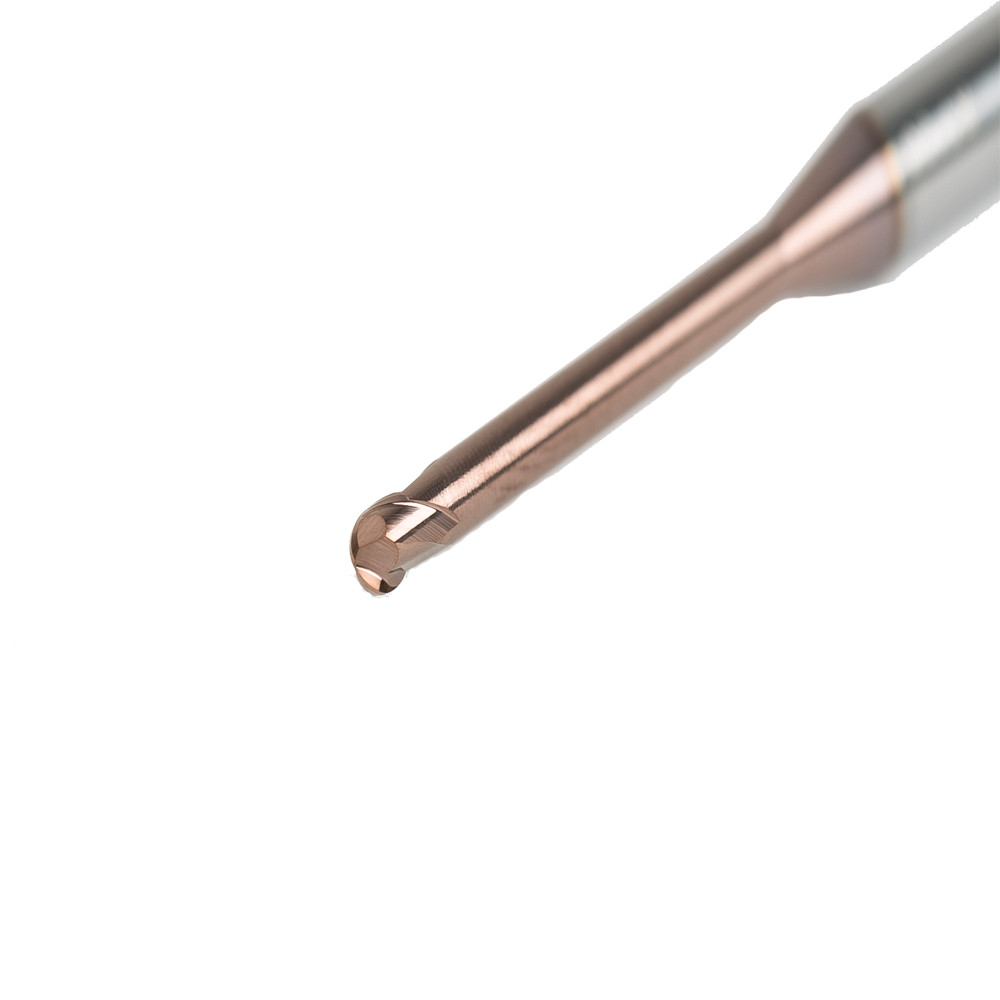

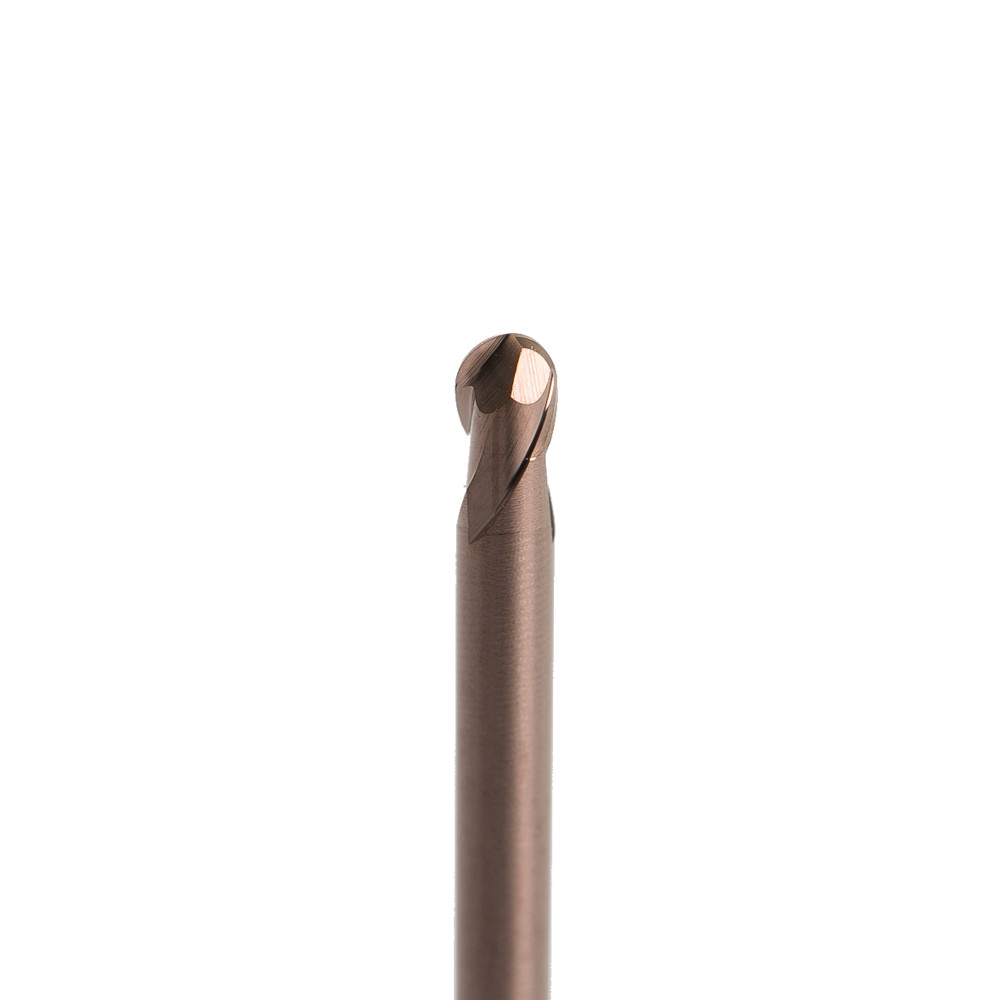

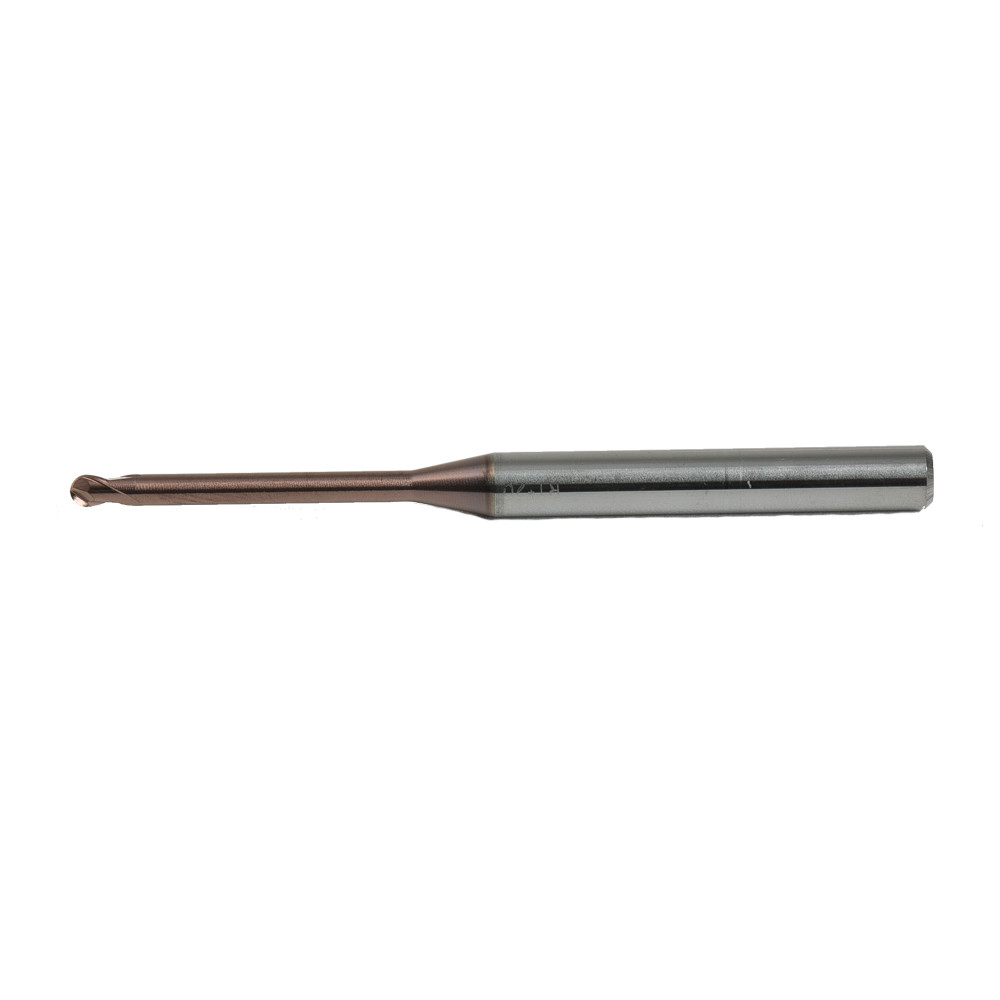

Carbide Ball Nose End Mill DESCRIPTION ▼
carbide ball nose end mill use an ultrafine particle matrix with a grain size of 0.4um.
Using chromium-aluminum nano-coating, it has ultra-high versatility and wear resistance.
The OEM carbide ball nose end mill is suitable for processing soft materials such as P20 and 718H;
Carbide ball nose end mill is very suitable for semi-finishing and finishing of NAK80, H13, S136 and other materials after quenching (HRC48-52).

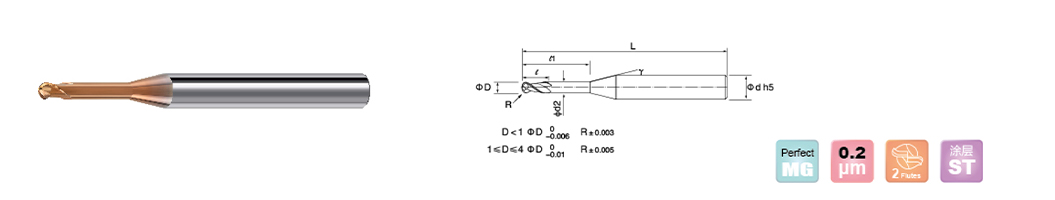

Model (NO.) | Ball Head Radius (R) | Neck Length (L) | Blade Length (L) | External Diameter (D) | Neck Diameter (D) | Neck Angle (γ Reference) | Shank Diameter (D) | Full Length (L) | Pricing (RMB) |
SSB-20300-160-06075 | R1.5 | 16 | 3 | 3 | 2.92 | 12° | 6 | 75 | 76 |
SSB-20300-180-06075 | 18 | 75 | |||||||
SSB-20300-200-06075 | 20 | 75 | |||||||
SSB-20300-250-06075 | 25 | 75 | |||||||
SSB-20300-300-06075 | 30 | 75 | |||||||
SSB-20400-160-06060 | R2 | 16 | 4 | 4 | 3.9 | 12° | 6 | 60 | 72 |
SSB-20400-180-06060 | 18 | 60 | |||||||
SSB-20400-200-06060 | 20 | 60 | |||||||
SSB-20400-250-06060 | 25 | 60 | |||||||
SSB-20400-160-06075 | 16 | 75 | 76 | ||||||
SSB-20400-180-06075 | 18 | 75 | |||||||
SSB-20400-200-06075 | 20 | 75 | |||||||
SSB-20400-250-06075 | 25 | 75 | |||||||
SSB-20400-300-06075 | 30 | 75 | |||||||
SSB-20400-350-06075 | 35 | 75 |
