0.1mm to 0.8mm
Material: Carbide
Grain Size: 0.2μm
No of Flutes: 2F
Diameter Tolerance: 0-0.006
MQO:10pcs
Coating: Superhard Composite Coating
PRODUCT DESCRIPTION ▼

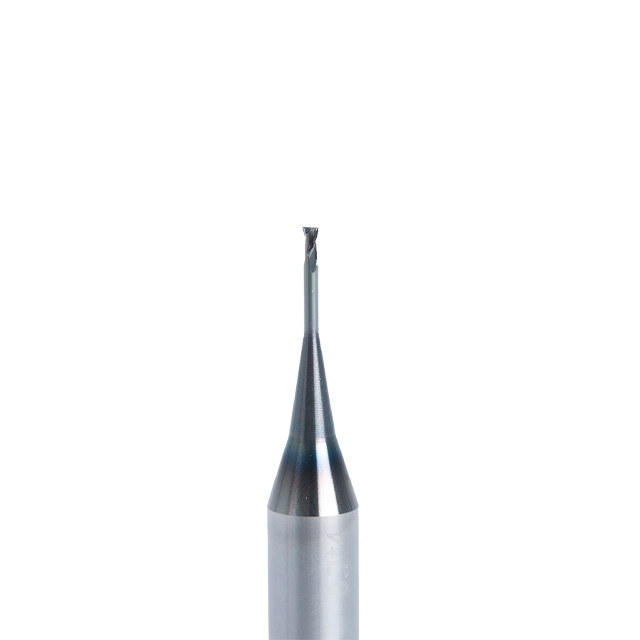

Long neck square end mills for pre-hardened and hardened steel(HRC52~62)
Excellent wear resistance with Superhard composite coating.
High precise edge tolerance.
Excellent work surface finish.
Long reach end mill cutter outstanding performance at high-speed machining by ultra fine (0.2µm) WC grade.
When replacing a long neck square end mills carbide, Here are some key points to consider:
Spindle Stoppage: Always ensure that the spindle has stopped turning before attempting to change the long neck square end mills to avoid injury.
DOOR INTERLOCK: Do not operate the machine unless the machine door is closed and the interlock is functioning properly. This is essential to prevent accidental start-up or entry into a hazardous area during operation.
INSPECTION: Before operating the machine, inspect for damaged parts and long neck end mill. Any damaged parts or tools should be properly repaired or replaced by authorized personnel.
TOOL WEAR: Replace long neck square end mills when signs of wear, breakage, or poor cutting results are detected. Ignoring these signs and persisting with worn tools will result in much lower-quality machining and can lead to more serious problems

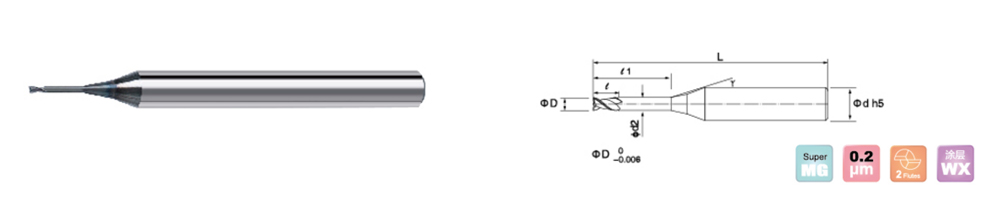

Long neck square end mills Drawing:
Model (NO.) | Flute Diameter (D) | Neck Length (l1) | Flute Length (l) | Neck Diameter (d2) | Neck Angle (γ Reference） | Shank Diameter (d) | Overall Length (L) |
UUE-20010-003-04045 | 0.1 | 0.3 | 0.1 | 0.085 | 15° | 4 | 45 |
UUE-20010-005-04045 | 0.5 | 45 | |||||
UUE-20010-008-04045 | 0.8 | 45 | |||||
UUE-20010-010-04045 | 1 | 45 | |||||
UUE-20015-005-04045 | 0.15 | 0.5 | 0.15 | 0.13 | 15° | 4 | 45 |
UUE-20015-010-04045 | 1 | 45 | |||||
UUE-20020-010-04045 | 0.2 | 1 | 0.2 | 0.18 | 15° | 4 | 45 |
UUE-20020-015-04045 | 1.5 | 45 | |||||
UUE-20020-020-04045 | 2 | 45 | |||||
UUE-20020-030-04045 | 3 | 45 | |||||
UUE-20020-040-04045 | 4 | 45 | |||||
UUE-20030-010-04045 | 0.3 | 1 | 0.3 | 0.27 | 15° | 4 | 45 |
UUE-20030-015-04045 | 1.5 | 45 | |||||
UUE-20030-020-04045 | 2 | 45 | |||||
UUE-20030-030-04045 | 3 | 45 | |||||
UUE-20030-040-04045 | 4 | 45 | |||||
UUE-20030-050-04045 | 5 | 45 | |||||
UUE-20040-015-04045 | 0.4 | 1.5 | 0.4 | 0.37 | 15° | 4 | 45 |
UUE-20040-020-04045 | 2 | 45 | |||||
UUE-20040-030-04045 | 3 | 45 | |||||
UUE-20040-040-04045 | 4 | 45 | |||||
UUE-20040-050-04045 | 5 | 45 | |||||
UUE-20040-060-04045 | 6 | 45 | |||||
UUE-20050-020-04045 | 0.5 | 2 | 0.5 | 0.46 | 15° | 4 | 45 |
UUE-20050-030-04045 | 3 | 45 | |||||
UUE-20050-040-04045 | 4 | 45 | |||||
UUE-20050-050-04045 | 5 | 45 | |||||
UUE-20050-060-04045 | 6 | 45 | |||||
UUE-20050-080-04045 | 8 | 45 | |||||
UUE-20050-100-04045 | 10 | 45 | |||||
UUE-20060-020-04045 | 0.6 | 2 | 0.6 | 0.56 | 15° | 4 | 45 |
UUE-20060-030-04045 | 3 | 45 | |||||
UUE-20060-040-04045 | 4 | 45 | |||||
UUE-20060-050-04045 | 5 | 45 | |||||
UUE-20060-060-04045 | 6 | 45 | |||||
UUE-20060-080-04045 | 8 | 45 | |||||
UUE-20060-100-04045 | 10 | 45 | |||||
UUE-20070-020-04045 | 0.7 | 2 | 0.7 | 0.66 | 15° | 4 | 45 |
UUE-20070-030-04045 | 3 | 45 | |||||
UUE-20070-020-04045 | 4 | 45 | |||||
UUE-20070-050-04045 | 5 | 45 | |||||
UUE-20070-060-04045 | 6 | 45 | |||||
UUE-20070-080-04045 | 8 | 45 | |||||
UUE-20070-100-04045 | 10 | 45 | |||||
UUE-20080-020-04045 | 0.8 | 2 | 0.8 | 0.76 | 15° | 4 | 45 |
UUE-20080-030-04045 | 3 | 45 | |||||
UUE-20080-040-04045 | 4 | 45 | |||||
UUE-20080-050-04045 | 5 | 45 | |||||
UUE-20080-060-04045 | 6 | 45 | |||||
UUE-20080-080-04045 | 8 | 45 | |||||
UUE-20080-100-04045 | 10 | 45 |

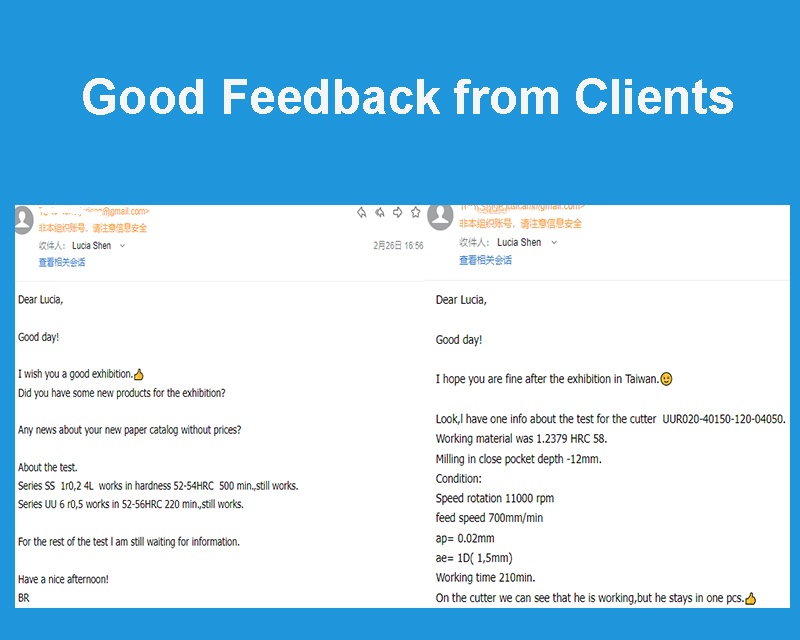

Client's Good Feedback:
Safety precautions：
1. Lubrication: The right amount of lubricant can form a protective film between the tool and the workpiece, reducing direct contact and thus extending the long neck square end mills life.
2. Proper Tool Storage: After use, store the square end mill in a dry, clean, vibration-free environment.
3. Regular Cleaning: Clean the chips and residues on the tool promptly after each processing to keep the long reach end mill tool clean and sharp.
4. Inspection and Grinding: Regularly inspect the square end mill for wear and repair it if necessary.
5. Tool Selection: Choose the right long reach end mill tool according to the processing material and requirements
Why choose a long neck square end mill manufacturer-Baiyang？
As a trusted long neck square end mills carbidemanufacturer, we specialize in miniature carbide end mills, including long neck radius end mills, extra long reach carbide end mills, long neck ball end mills, extra long reach end mills, and square long neck end mills. We offer:
Superior Durability: Engineered for high-speed machining of hardened steel, titanium, and composites.
Global Compliance: ISO 9001-certified
Rapid Delivery: Stock availability for standard tools and expedited shipping options.

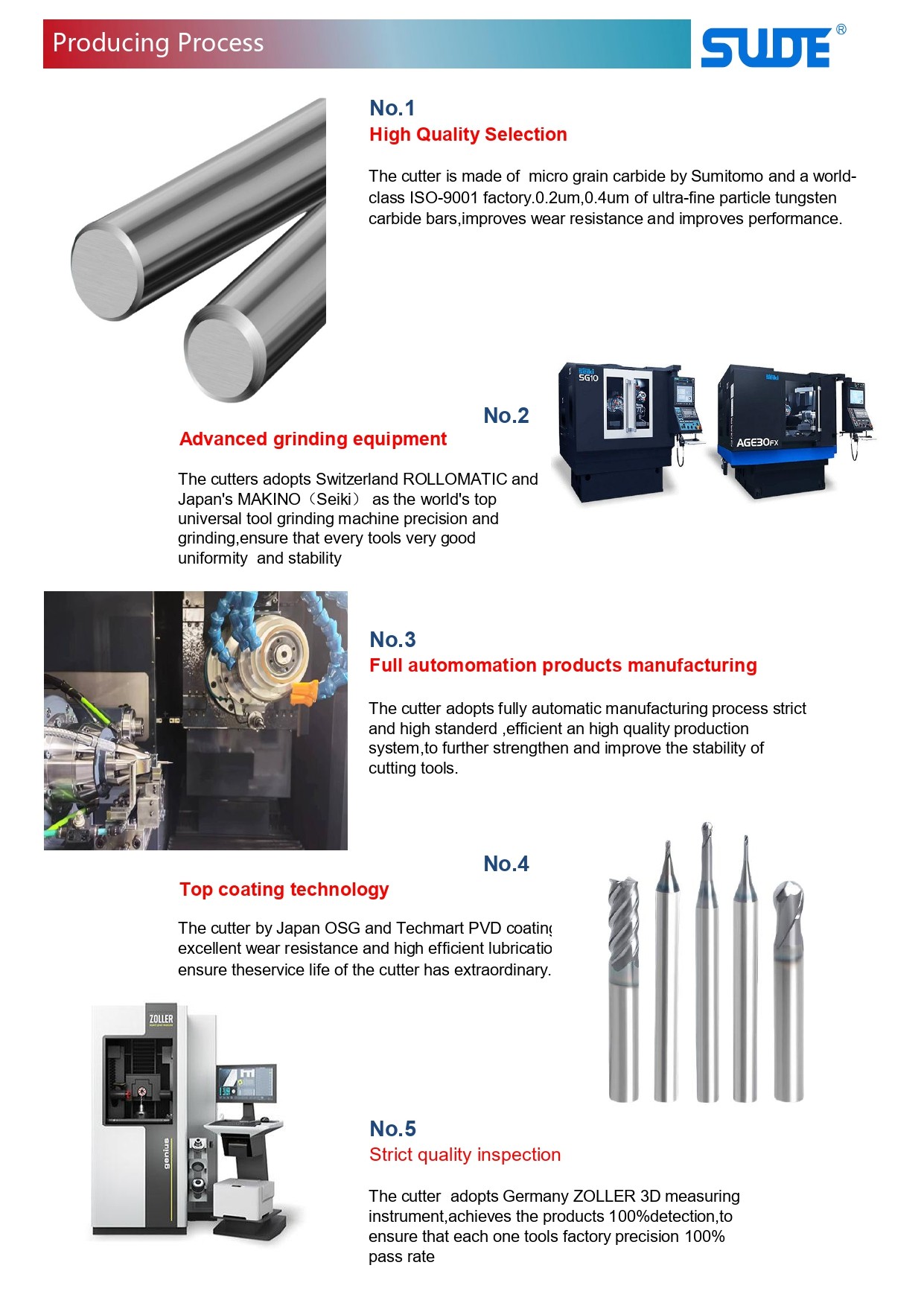

Every long neck square end mills product undergoes 100% quality inspection using German ZOLLER tool detectors to ensure precision and accuracy. Long neck square end mill manufacturer also has an application technology center focused on extending tool life and driving product innovation.
Promotion Policy:
1. Free sample:Free long neck square end mills sample can be provided, if clients agree to pay for shipping cost.
2. First order coupon: New clients can enjoy USD50 discount coupon for first order if the total long neck end mills order amount is more than USD500.
3. Big order discount: Clients can enjoy a 2%~5% discount if the total long neck end mills order amount is more than USD 5,000.
Clients Benefits:
1. More revenue: due to our big long neck square end mills stocks, tool costs can be controlled. With our competitive price, long neck square end mill manufacturer-Baiyang can help you to make even more revenue but at lower cost.
2. No quality complaint: By controlling quality from raw material to the production process and 100% examed before shipment, long neck square end mills manufacturer can help you to keep away from any clients complaining for square end mill quality issues.
3. Increase client's conversion rate: with our technical and market experience, long neck square end mill manufacturer can help you to generate more customers with an even higher conversion rate.
4. Fast feedback: long neck square end mill manufacturer-Baiyang offer 24-hour online service, any questions about long reach end mill from you or your clients will be replied immediately, and your clients will be happy, then you will be happy
5. Baiyang Tools strives constantly to enhance its own technological.
HIGH PRECISION, HIGH QUALITY WITH REASONABLE PRICE.WELCOME TO INQUIRY US!
