1mm to 4mm
Material: Carbide
Grain Size: 0.4μm
No of Flutes: 4 Flute End Mills for Stainless Steel
Shank Dia: 4mm,6mm
Application: Mold industry, auto parts, automation equipment
Coating: SiTiNO Composite Coating

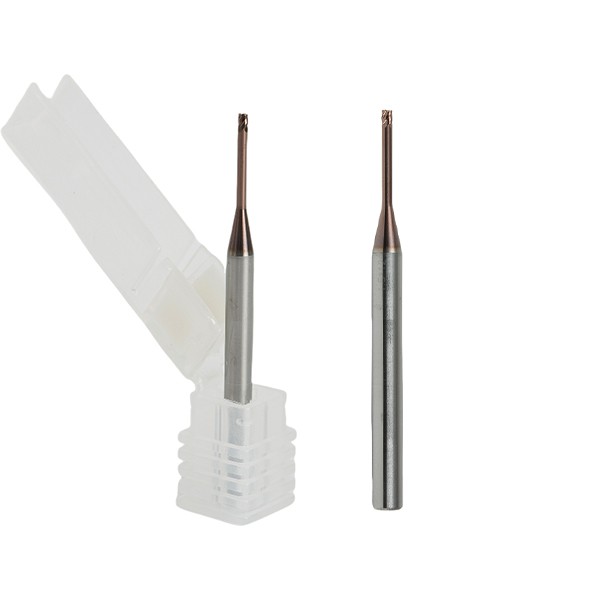

tungsten carbide milling cutters | 4 Flute End Mills for Stainless Steel
PRODUCT DESCRIPTION ▼
Provide high-speed operation and tungsten carbide milling cutters life on general steels and even with stainless steel.
The smooth coating made it possible to increase the life of the tungsten carbide milling cutters.
● tungsten carbide milling cutters Diameter Range: 0.1mm-4mm
● Excellent wear resistance, this is particularly effective for machining steel forgings for automotive applications.
● High hardness surface coating treatment.
tungsten carbide milling cuttersapplicable to semi-finishing and finishing of NAK80, H13, S136, and other materials after quenching (HRC48-52).

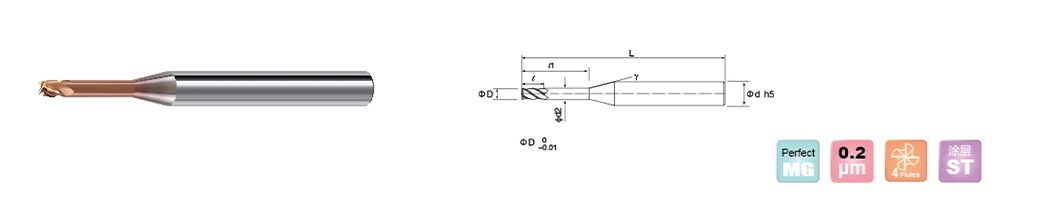

Tungsten carbide milling cutters Drawing :
| 型号 No | 刃径D | 径长l1 | 刃长l | 颈d2 | 劲角r | 柄径d | 全长L |
| SSE-40100-040-04050 | 1 | 4 | 1 | 0.95 | 12° | 4 | 50 |
| SSE-40100-050-04050 | 5 | 50 | |||||
| SSE-40100-060-04050 | 6 | 50 | |||||
| SSE-40100-080-04050 | 8 | 50 | |||||
| SSE-40100-100-04050 | 10 | 50 | |||||
| SSE-40100-120-04050 | 12 | 50 | |||||
| SSE-40100-140-04050 | 14 | 50 | |||||
| SSE-40100-160-04050 | 16 | 50 | |||||
| SSE-40100-180-04050 | 18 | 50 | |||||
| SSE-40100-200-04050 | 20 | 50 | |||||
| SSE-40150-060-04050 | 1.5 | 6 | 1.5 | 1.44 | 12° | 4 | 50 |
| SSE-40150-080-04050 | 8 | 50 | |||||
| SSE-40150-100-04050 | 10 | 50 | |||||
| SSE-40150-120-04050 | 12 | 50 | |||||
| SSE-40150-140-04050 | 14 | 50 | |||||
| SSE-40150-160-04050 | 16 | 50 | |||||
| SSE-40150-180-04050 | 18 | 50 | |||||
| SSE-40150-200-04050 | 20 | 50 | |||||
| SSE-40200-060-04050 | 2 | 6 | 2 | 1.94 | 12° | 4 | 50 |
| SSE-40200-080-04050 | 8 | 50 | |||||
| SSE-40200-100-04050 | 10 | 50 | |||||
| SSE-40200-120-04050 | 12 | 50 | |||||
| SSE-40200-140-04050 | 14 | 50 | |||||
| SSE-40200-160-04050 | 16 | 50 | |||||
| SSE-40200-180-04050 | 18 | 50 | |||||
| SSE-40200-200-04050 | 20 | 50 | |||||
| SSE-40300-100-04050 | 3 | 10 | 3 | 2.92 | 12° | 4 | 50 |
| SSE-40300-120-04050 | 12 | 50 | |||||
| SSE-40300-140-04050 | 14 | 50 | |||||
| SSE-40300-160-04050 | 16 | 50 | |||||
| SSE-40300-180-04050 | 18 | 50 | |||||
| SSE-40300-200-04050 | 20 | 50 | |||||
| SSE-40300-160-06060 | 16 | 6 | 60 | ||||
| SSE-40300-180-06060 | 18 | 60 | |||||
| SSE-40300-200-06060 | 20 | 60 | |||||
| SSE-40300-250-06060 | 25 | 60 | |||||
| SSE-40300-160-06075 | 16 | 75 | |||||
| SSE-40300-180-06075 | 18 | 75 | |||||
| SSE-40300-200-06075 | 20 | 75 | |||||
| SSE-40300-250-06075 | 25 | 75 | |||||
| SSE-40300-300-06075 | 30 | 75 | |||||
| SSE-40300-350-06075 | 35 | 75 | |||||
| SSE-40400-160-06060 | 4 | 16 | 4 | 3.9 | 12° | 6 | 60 |
| SSE-40400-180-06060 | 18 | 60 | |||||
| SSE-40400-200-06060 | 20 | 60 | |||||
| SSE-40400-250-06060 | 25 | 60 | |||||
| SSE-40400-160-06075 | 16 | 75 | |||||
| SSE-40400-180-06075 | 18 | 75 | |||||
| SSE-40400-200-06075 | 20 | 75 | |||||
| SSE-40400-250-06075 | 25 | 75 | |||||
| SSE-40400-300-06075 | 30 | 75 | |||||
| SSE-40400-350-06075 | 35 | 75 |
Promotion Policy:
1. Free sample: Free tungsten carbide milling cutters sample can be provided, if clients agree to pay for shipping cost.
2. First order coupon: New clients can enjoy a USD50 discount coupon for the first order if the total order amount is more than USD500.
3. Big order discount: Clients can enjoy 2%~5% discount, if the total order amount is more than USD5000.

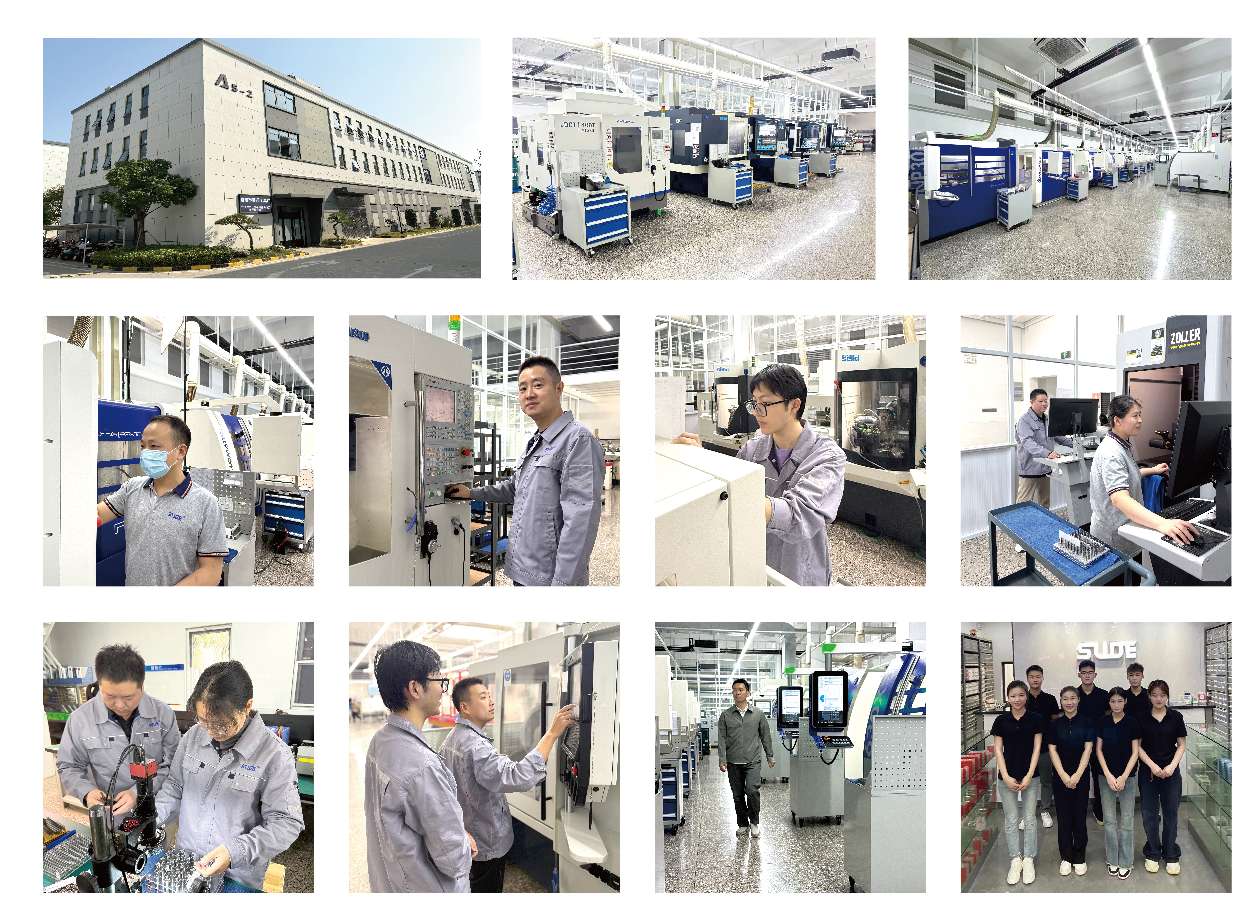

tungsten carbide milling cutters Factory Team：
