US＜HRC52 Universal Series /
R0.05 to R2mm
Material: Carbide
Grain size: 0.4μm
No of Flute: 2F
Shank Dia: 4mm,6mm
Coating: AICrTiN

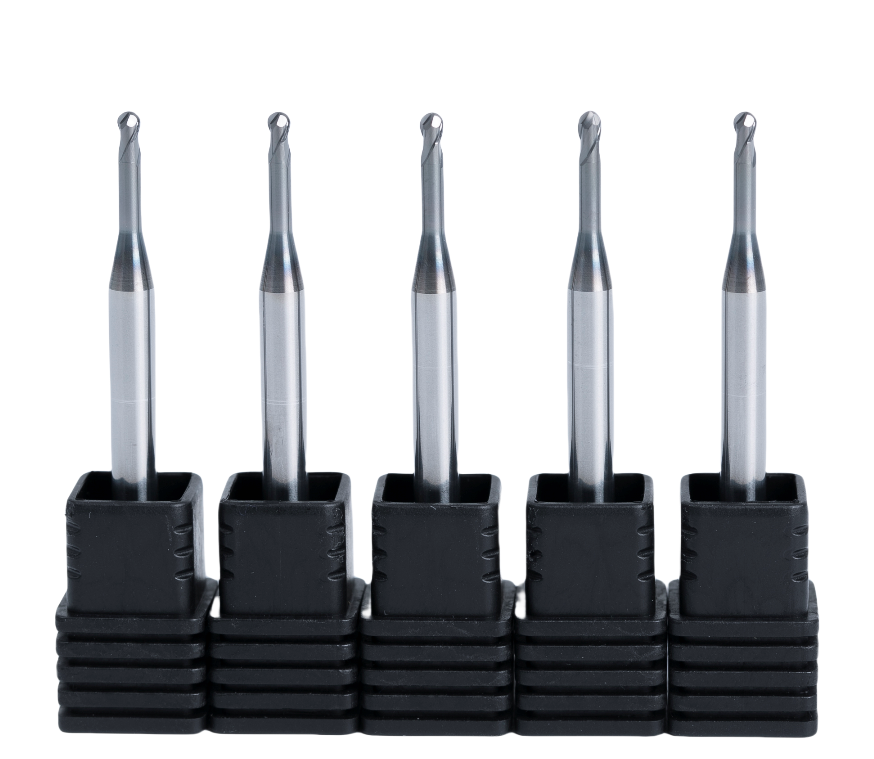

Carbide Ball Nose Cutter DESCRIPTION ▼
Tungsten carbide ball nose cutters designed for deep pockets in molds and cavities when ordinary end mills can't reach. Can Be Modified with a Neck.
● carbide ball nose cutters 2 Flute Extra Long Reach.
● Superior coating reduces manufacturing costs and machining time.
● carbide ball nose cutter with maximize the wear resistance due to the ArCrTiN coating.
● The carbide ball nose cutter production of complex 3-D moulds and contours is possible.
● tungsten carbide ball nose cutter tools with excellent workpiece surface finish.
● Tight tolerence: R±0.003 (0.1-0.9mm), R±0.005 (1-4mm)
Carbide ball nose cutter applicable to high-speed processing of P20, 718H, H13, NAK80, S136, S136H and other materials before heat treatment (＜HRC45) and the processing of various product parts.
Tungsten Carbide Tools Rib Ball Nose Cutters Drawing :
| Model（NO.） | Ball Nose Radius （R) | Neck Length（l1) | Flute Length（l） | Flute Diameter (D) | Neck Diameter (d2) | Neck Angle(Y) | Shank Diameter(d) | Overall Length (L) |
USB-20010-003-04045 | R0.05 | 0.3 | 0.1 | 0.1 | 0.085 | 15° | 4 | 45 |
USB-20010-005-04045 | 0.5 | 45 | ||||||
USB-20010-008-04045 | 0.8 | 45 | ||||||
USB-20010-010-04045 | 1 | 45 | ||||||
USB-20015-005-04045 | R0.075 | 0.5 | 0.15 | 0.15 | 0.13 | 15° | 4 | 45 |
USB-20015-010-04045 | 1 | 45 | ||||||
USB-20020-010-04045 | R0.1 | 1 | 0.2 | 0.2 | 0.18 | 15° | 4 | 45 |
USB-20020-015-04045 | 1.5 | 0.2 | 0.2 | 0.18 | 12° | 4 | 45 | |
USB-20020-020-04045 | 2 | 45 | ||||||
USB-20020-030-04045 | 3 | 45 | ||||||
USB-20030-010-04045 | R0.15 | 1 | 0.3 | 0.3 | 0.27 | 15° | 4 | 45 |
USB-20030-015-04045 | 1.5 | 0.3 | 0.3 | 0.27 | 12° | 4 | 45 | |
USB-20030-020-04045 | 2 | 45 | ||||||
USB-20030-030-04045 | 3 | 45 | ||||||
USB-20030-040-04045 | 4 | 45 | ||||||
USB-20030-050-04045 | 5 | 45 | ||||||
USB-20040-015-04045 | R0.2 | 1.5 | 0.4 | 0.4 | 0.37 | 12° | 4 | 45 |
USB-20040-020-04045 | 2 | 45 | ||||||
USB-20040-030-04045 | 3 | 45 | ||||||
USB-20040-040-04045 | 4 | 45 | ||||||
USB-20040-050-04045 | 5 | 45 | ||||||
USB-20040-060-04045 | 6 | 45 | ||||||
USB-20050-020-04045 | R0.25 | 2 | 0.5 | 0.5 | 0.46 | 12° | 4 | 45 |
USB-20050-030-04045 | 3 | 45 | ||||||
USB-20050-040-04045 | 4 | 45 | ||||||
USB-20050-050-04045 | 5 | 45 | ||||||
USB-20050-060-04045 | 6 | 45 | ||||||
USB-20050-080-04045 | 8 | 45 | ||||||
USB-20060-020-04045 | R0.3 | 2 | 0.6 | 0.6 | 0.56 | 12° | 4 | 45 |
USB-20060-030-04045 | 3 | 45 | ||||||
USB-20060-040-04045 | 4 | 45 | ||||||
USB-20060-050-04045 | 5 | 45 | ||||||
USB-20060-060-04045 | 6 | 45 | ||||||
USB-20060-080-04045 | 8 | 45 | ||||||
USB-20060-100-04045 | 10 | 45 | ||||||
USB-20080-020-04045 | R0.4 | 2 | 0.8 | 0.8 | 0.76 | 12° | 4 | 45 |
USB-20080-030-04045 | 3 | 45 | ||||||
USB-20080-040-04045 | 4 | 45 | ||||||
USB-20080-050-04045 | 5 | 45 | ||||||
USB-20080-060-04045 | 6 | 45 | ||||||
USB-20080-080-04045 | 8 | 45 | ||||||
USB-20080-100-04045 | 10 | 45 | ||||||
USB-20100-030-04050 | R0.5 | 3 | 1 | 1 | 0.95 | 12° | 4 | 50 |
USB-20100-040-04050 | 4 | 50 | ||||||
USB-20100-050-04050 | 5 | 50 | ||||||
USB-20100-060-04050 | 6 | 50 | ||||||
USB-20100-080-04050 | 8 | 50 | ||||||
USB-20100-100-04050 | 10 | 50 | ||||||
USB-20100-120-04050 | 12 | 50 | ||||||
USB-20100-140-04050 | 14 | 50 | ||||||
USB-20100-160-04050 | 16 | 50 | ||||||
USB-20100-180-04050 | 18 | 50 | ||||||
USB-20100-200-04050 | 20 | 50 | ||||||
USB-20150-040-04050 | R0.75 | 4 | 1.5 | 1.5 | 1.44 | 12° | 4 | 50 |
USB-20150-050-04050 | 5 | 50 | ||||||
USB-20150-060-04050 | 6 | 50 | ||||||
USB-20150-080-04050 | 8 | 50 | ||||||
USB-20150-100-04050 | 10 | 50 | ||||||
USB-20150-120-04050 | 12 | 50 | ||||||
USB-20150-160-04050 | 16 | 50 | ||||||
USB-20150-180-04050 | 18 | 50 | ||||||
USB-20150-200-04050 | 20 | 50 | ||||||
USB-20200-060-04050 | R1 | 6 | 2 | 2 | 1.94 | 12° | 4 | 50 |
USB-20200-080-04050 | 8 | 50 | ||||||
USB-20200-100-04050 | 10 | 50 | ||||||
USB-20200-120-04050 | 12 | 50 | ||||||
USB-20200-140-04050 | 14 | 50 | ||||||
USB-20200-160-04050 | 16 | 50 | ||||||
USB-20200-180-04050 | 18 | 50 | ||||||
USB-20200-200-04050 | 20 | 50 | ||||||
USB-20200-160-06060 | 16 | 6 | 60 | |||||
USB-20200-180-06060 | 18 | 60 | ||||||
USB-20200-200-06060 | 20 | 60 | ||||||
USB-20200-250-06060 | 25 | 60 | ||||||
USB-20300-080-04050 | R1.5 | 8 | 3 | 3 | 2.92 | 12° | 4 | 50 |
USB-20300-100-04050 | 10 | 50 | ||||||
USB-20300-120-04050 | 12 | 50 | ||||||
USB-20300-160-04050 | 16 | 50 | ||||||
USB-20300-200-04050 | 20 | 50 | ||||||
USB-20300-160-06060 | 16 | 6 | 60 | |||||
USB-20300-180-06060 | 18 | 60 | ||||||
USB-20300-200-06060 | 20 | 60 | ||||||
USB-20300-250-06060 | 25 | 60 | ||||||
USB-20300-160-06075 | R1.5 | 16 | 3 | 3 | 2.92 | 12° | 4 | 75 |
USB-20300-180-06075 | 18 | 75 | ||||||
USB-20300-200-06075 | 20 | 75 | ||||||
USB-20300-250-06075 | 25 | 75 | ||||||
USB-20300-300-06075 | 30 | 75 | ||||||
USB-20400-160-06060 | R2 | 16 | 4 | 4 | 3.9 | 12° | 6 | 60 |
USB-20400-180-06060 | 18 | 60 | ||||||
USB-20400-200-06060 | 20 | 60 | ||||||
USB-20400-250-06060 | 25 | 60 | ||||||
USB-20400-160-06075 | 16 | 75 | ||||||
USB-20400-180-06075 | 18 | 75 | ||||||
USB-20400-200-06075 | 20 | 75 | ||||||
USB-20400-250-06075 | 25 | 75 | ||||||
USB-20400-300-06075 | 30 | 75 | ||||||
USB-20400-350-06075 | 35 | 75 |
