Carbide: Ultrafine Grain Tungsten Steel
Diameter: 4-12mm
Coating: Superhard Composite Coating
Radius: R0.2/R0.5/R1

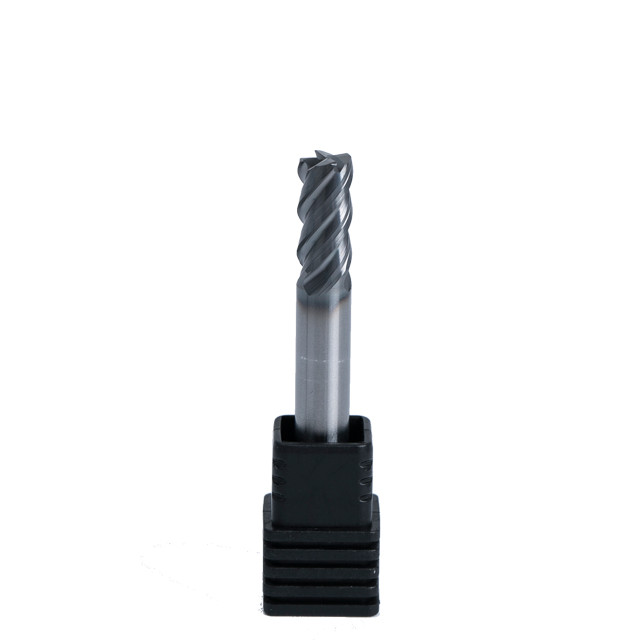

Best carbide drill bits for hardened steel DESCRIPTION ▼
Best carbide drill bits for hardened steel | Processing ≤HRC62 high-hardened materials | Precision and Efficient Milling Expert.
Ultra-high hardness processing: Specially designed for hardened steel, tool steel and other hard materials, carbide drill bits for hardened steel can stably process workpieces with a hardness of HRC62, and is competent for difficult cutting tasks.
Strong and tough: Best carbide drill bits for hardened steel use nano-level ultra-fine particle carbide matrix, strong impact resistance, effectively reducing chipping and wear, and extending tool life.
Precision flute design: The Best carbide drill bits for hardened steel is combined with an optimized chip removal groove to achieve high-finish surface processing, semi-finishing milling, and finishing milling in one go.
Multi-functional application: Best carbide drill bits for hardened steel is widely used in cavity, bevel and contour processing of materials such as mold steel (such as SKD11, H13), high-speed steel (ASP30) and hardened alloy steel (42CrMoA).
✓ Precision mold cavity milling
✓ Semi-finishing/finishing of high-hardness parts
✓ Difficult-to-process materials in aerospace
✓Automotive parts milling cutter
Aerospace alloy milling cutter
Reasons for selection: High hardness, High efficiency, and Long life, it is an ideal solution for mold manufacturing and high-hardness material processing!
Model (NO.) | Flute Diameter (D) | Radius (R) | FluteLength (D) | Neck Angle (γ Reference) | Shank Diameter (D) | Full Length (L) |
UUR005-4010-04050 | 1 | 0.05 | 2 | 12° | 6 | 50 |
UUR010-4010-04050 | 0.1 | 50 | ||||
UUR020-4010-04050 | 0.2 | 50 | ||||
UUR010-4015-04050 | 1.5 | 0.1 | 3 | 50 | ||
UUR020-4015-04050 | 0.2 | 50 | ||||
UUR010-4020-04050 | 2 | 0.1 | 4 | 50 | ||
UUR020-4020-04050 | 0.2 | 50 | ||||
UUR050-4020-04050 | 0.5 | 50 | ||||
UUR010-4030-04050 | 3 | 0.1 | 6 | 50 | ||
UUR020-4030-04050 | 0.2 | 50 | ||||
UUR050-4030-04050 | 0.5 | 50 | ||||
UUR020-4040-04050 | 4 | 0.2 | 8 | - | 50 | |
UUR020-4040-04075 | 0.2 | 50 | ||||
UUR050-4040-04050 | 0.5 | 50 | ||||
UUR050-4040-04075 | 0.5 | 50 | ||||
UUR100-4040-04050 | 1 | 50 | ||||
UUR100-4040-04075 | 1 | 50 | ||||
UUR020-4060-06050 | 6 | 0.2 | 12 | 6 | 50 | |
UUR020-4060-06060 | 0.2 | 60 | ||||
UUR020-4060-06075 | 0.5 | 75 | ||||
UUR050-4060-06050 | 0.5 | 50 | ||||
UUR050-4060-06060 | 0.5 | 60 | ||||
UUR050-4060-06075 | 0.5 | 75 | ||||
UUR100-4060-06050 | 1 | 50 | ||||
UUR100-4060-06060 | 1 | 60 | ||||
UUR100-4060-06075 | 1 | 75 | ||||
UUR050-4080-08060 | 8 | 0.5 | 16 | 8 | 60 | |
UUR050-4080-08075 | 0.5 | 75 | ||||
UUR050-4080-08100 | 0.5 | 100 | ||||
UUR100-4080-08060 | 1 | 60 | ||||
UUR100-4080-08075 | 1 | 75 | ||||
UUR100-4080-08100 | 1 | 100 | ||||
UUR050-4100-10075 | 10 | 0.5 | 20 | 10 | 75 | |
UUR050-4100-10100 | 0.5 | 100 | ||||
UUR100-4100-10075 | 1 | 75 | ||||
UUR100-4100-10100 | 1 | 100 | ||||
UUR050-4120-10075 | 12 | 0.5 | 24 | 12 | 75 | |
UUR050-4120-10100 | 0.5 | 100 | ||||
UUR100-4120-10075 | 1 | 75 | ||||
UUR100-4120-10100 | 1 | 100 |
